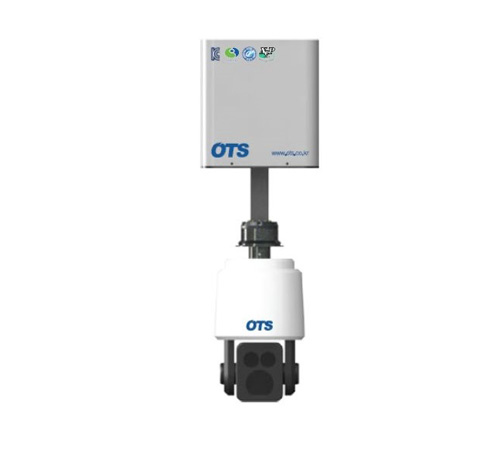

[AL-100H] Auto Lift

페이지 정보

작성자 OTS 댓글댓글 0건 조회조회 51회 작성일작성일 25-12-19 14:22

본문



製品の特長

Lifting / Lowering Height
10–20 m (custom-made for lengths over 20 m)
Camera Support Type
Analog / Network
Camera Video Quality
IP, HD-SDI, AHD, SD
Camera IP (ICR)
Available
Operating Load
10kg
Dust / Water / Impact Protection
IP55 / IK07
Power Supply
AC100~240V / 50~60HZ
Material / Weight
Exterior: SUS, Interior: Aluminum / 15 kg
Dimensions (W × H × D) mm
300×320×300
Auto Lift Power Consumption
220V / 60Hz, 0.5A
SMPS Specifications
DC 24V / 4.3A (Max. 100 W)
SMPS Power Consumption
- Normal operation: within ~1 A
- Under camera load: within 1–3 A
Certifications
Certification by the Ministry of the Interior and Safety for Disaster & Safety Products (No. CDSP-2022-30)
Performance Certification by the Ministry of SMEs and Startups (No. 23-CBF0368)
Designation as an Excellent Government Procurement Product (
