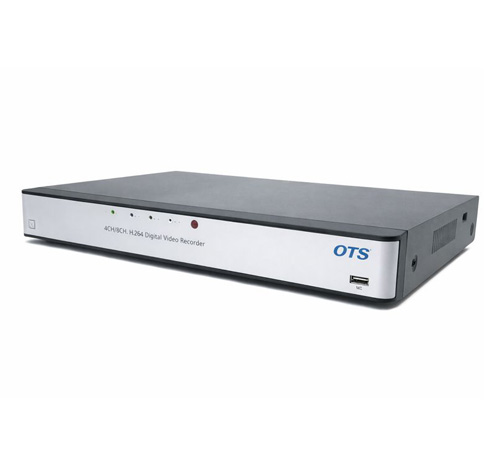

NVR OTS-D1008VA, D1016VA

페이지 정보

작성자 OTS 댓글댓글 0건 조회조회 33회 작성일작성일 25-12-23 17:44

본문




产品特点

Key Specifications
System Power: DC 12 V / 3 A
System Configuration (by dimension): Embedded DVR
Storage Bays: 2 × SATA
USB: 2 Ports (USB 2.0 / 3.0)
Video Input
Camera Input Channels
OTS-D1008VA: 8 CH (EN/AHD, TVI, CVI, CVBS)
OTS-D1016VA: 16 CH (EN/AHD, TVI, CVI, CVBS)
IP Cameras: Optional
Camera Input Resolution: 1080p, 720p, 960H, D1
Video Output
Output Ports: HDMI, VGA, Spot Out
Display Resolution: 3840×2160 (4K), 1280×720, 1920×1080
Screen Split
OTS-D1008VA : 1 / 4 / 9 Split
OTS-D1016VA : 1 / 4 / 9 / 12 / 16 Split
Monitoring / Recording Resolution
Main Stream: 1080p @ 240 fps / Sub Stream: D1 @ 240 fps
Monitoring / Recording Frame Rate
Live Display: Main Realtime / Sub Realtime
Simultaneous Playback
OTS-D1008VA: 1080p (1/4/9 Split)
OTS-D1016VA: 960H (1/4/9/12/16 Split)
Recording Mode
Simultaneous Main / Sub Stream Recording
Search Mode
Calendar, Event, Thumbnail
Expansion Interface
Alarm Input: 8 (Terminal Block) / Alarm Output: 1 (Terminal Block) / RS485: 1 / Serial Interface: USB to Serial, RS485, UTC
NIC
1 (100 Mbps)
Other Features
Digital Zoom (Live) / Still Image Capture / Live Freeze Mode / Instant Playback / Privacy Zone Settings / Motion Zone Settings / Email Notifications / DDNS / UTC Control
Data Backup
USB, FTP
Power Supply
DC 12V / 3A
Weight
1830 g
Dimensions
355 × 205 × 56 mm
