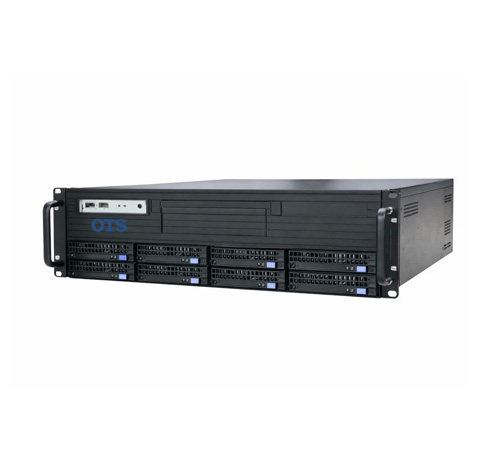

OAL-NVR-16

페이지 정보

작성자 OTS 댓글댓글 0건 조회조회 35회 작성일작성일 25-12-22 13:02

본문



製品の特長

Key Specifications
CPU : Intel Core 3GHz / Memory : 8GB / SSD : 120GB / VGA : Intel HD / ODD : DVD-Multi / OS : Windows 7 Embedded / Case : 4U Rack / Power : 500W
Video Input
16 Channels (Ethernet)
Video Output
RGB/PC : 1 / DVI : 1 /HDMI : 1
Screen Split
Selectable Split Modes: 1, 4, 6, 7, 9, 10, 13, 16
Monitoring / Recording Resolution
1920x1080, 1280x720 / 1920x1080, 1280x720
Monitoring / Recording Frame Rate
480fps / 480fps
Compression Method
H.264
Recording Mode
Continuous / Motion / Scheduled / Sensor / Emergency / Event
Search Mode
Date/Time, Calendar, Event, Camera, Object Search
Expansion Interface
SB HDD, RAID Card, POS
NIC
100/1000 Mbps or higher
Network Software
DVSS Client, SecumanCMS, SmartPhone
Other Features
E-MAP, H/W Watchdog, Watermark, False Alarm Reduction, Playback Speed Control Support
Data Backup
Automatic / Manual Backup Function
Power Supply
100~220V AC, 50/60Hz
Weight
23Kg
Dimensions
437 (W) × 174 (H) × 455 (D) mm
