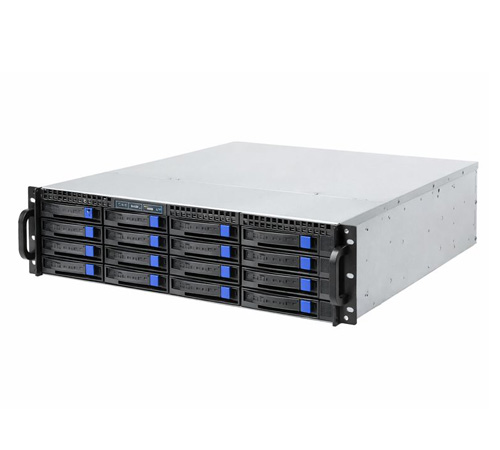

OTS-B16H series

페이지 정보

작성자 OTS 댓글댓글 0건 조회조회 29회 작성일작성일 25-12-23 17:56

본문



製品の特長

Key Specifications
CPU: Dual-core 1.0 GHz or higher / Intel i5 3.0 GHz or higher (advanced model)
RAM: DDR4 8 GB / 12 GB / 16 GB / 32 GB
Operating System: Linux 64-bit (Embedded)
System Disk: mSATA SSD 16 GB (OS, NVR software pre-installed)
Video Input
16 CH / 25 CH / 36 CH / 49 CH / 64 CH / 81 CH / 100 CH / 128 CH
IP Camera Protocols: ONVIF / RTSP/UDP / Axis / Dynacolor / Sony / Panasonic (supports protocols from over 100 manufacturers worldwide)
Video Output
Monitor Output: HDMI ×1 / D-Sub (VGA) or DVI
Output Channels: Supports up to 12-channel input/output
Screen Split
Split Modes: 1 / 2 / 4 / 6 / 7 / 9 / 10 / 13 / 16 / 25 / 36 / 49 / 64 / 81 / 100 / 121 / 128
Monitoring / Recording Resolution
CIF ~ 12MP / 5MP / 8MP / 12MP / 720P / 1080P
Monitoring / Recording Frame Rate
Per-Channel Performance (varies by model): 12 MP: up to 60 fps / 8 MP: up to 120 fps / 5 MP: up to 180 fps / 1080p: up to 240 fps
Live / Playback Performance: Supports up to 12 MP
Compression Method
H.265 / H.264 / MPEG4 / MJPEG /
Recording Mode
Continuous / Scheduled / Event-Linked
Search Mode
Date / Time / Calendar Search / Event Search
Other Features
Forward / Reverse Playback / High Speed (×1–×32), Low Speed (1/4–1/2), Step Forward/Backward / CIF to 12 MP
