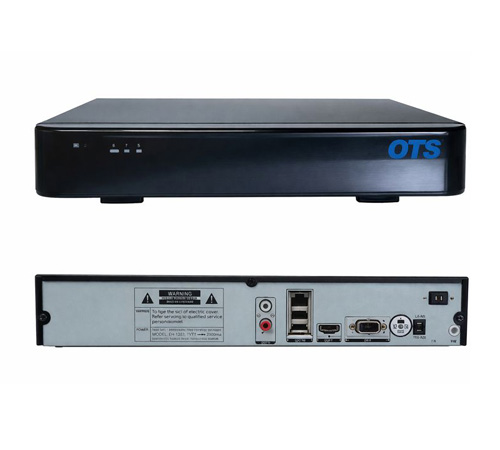

OTS-N1004VA, N1009VA, N1016V

페이지 정보

작성자 OTS 댓글댓글 0건 조회조회 30회 작성일작성일 25-12-23 17:33

본문



製品の特長

Key Specifications
Operating System: Embedded Linux
System Recovery: Auto-Reboot and Journaling File System
System Operation: IR Remote Controller, USB Mouse, Keyboard (Optional)
Video Input
OTS-N1004VA: 4 Ch
OTS-N1009VA: 9 Ch
OTS-N1016VA: 16 Ch
Supported Protocols: RTSP & ONVIF
Video Mode: IP Camera Input (D1, 720p, 1080p)
Video Output
1 x RCA, 1 x HDMI Port / HDMI
Screen Split
Main Stream : 1, 4 Ch
Sub Stream : 4, 9, 12, 16 Ch
OTS-N1004VA : 1, 4 Ch
OTS-N1009VA : 1, 4, 9 Ch
OTS-N1016VA : 1, 4, 9, 12, 16 Ch
Monitoring / Recording Resolution
1024×768, 1280×720, 1920×1080 (Selectable) / 720P / 1080P
Monitoring / Recording Frame Rate
OTS-N1004VA : D1@120fps / 720P@120fps
OTS-N1009VA : D1@270fps / 720P@270fps
OTS-N1016VA : D1@480fps / 720P@480fps
Compression Method
H.264
Recording Mode
Continuous Recording & Network Transmission /Main & Sub Stream Dual Recording
Search Mode
Intelli-Search by Time Bar, Calendar (Date & Time)/ Event Search & Thumbnail Search
NIC
Gigabit Ethernet (RJ45)
Network Software
VMS-Lite, Mobile (iOS / Android), Web/ Live Monitoring, Playback & System Configuration
Other Features
Dual Stream (Local Recording & Network Transmission) / Dual Recording (Main & Sub Stream) Live Monitoring, Remote Playback & File Backup / Time Synchronization by NTP Server / Firmware Upgrade by USB / Import & Export of Setting Value, AVI File Backup /
Data Backup
USB / FTP Server
Power Supply
DC 12V / 3A
Dimensions
333 × 256 × 50 mm
