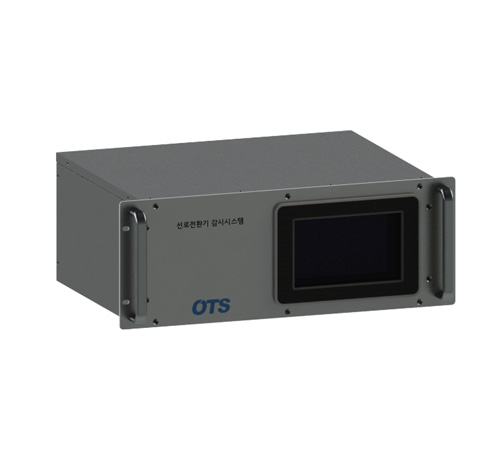

鉄道転轍機監視システム

페이지 정보

작성자 OTS 댓글댓글 0건 조회조회 42회 작성일작성일 25-12-22 10:25

본문



製品の特長

Power Voltage
AC 100~240V / 50~60HZ
Input Voltage
DC 30V, AC 110V
Maximum Allowable Input
150% of the measured input voltage
Display Accuracy
0.5% F.S.
Response Time
Approximately 800 ms
Insulation Resistance
DC Input: approximately 1 MΩ, AC Input: approximately 8.2 MΩ
Operation Method
7-inch Resistive Touch Screen
Display
7-inch LCD, 800 × 480
Communication Method
RS-232, RS-485, Ethernet
Appearance
425 x 332 x 177 mm (W x D x H)
Weight
10Kg
Operating Temperature
0°C to +60°C / Humidity: 70%
Material
IP Enclosure: Electro-galvanized steel sheet
Nameplate: Aluminum
